2Kb I2C/2-Wire Serial EEPROM, organized as 256 x 8 bits, featuring a 400kHz maximum frequency and 900ns access time. This non-volatile memory component operates with a supply voltage range of 4.5V to 5.5V and is housed in a compact MSOP package for surface mounting. It supports write protection and offers a write cycle time of 1.5ms maximum.
Frequency400kHz
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C02C-I/MS technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | MSOP |
| Contact Plating | Tin, Matte |
| Density | 2Kb |
| Frequency | 400kHz |
| Height | 0.95mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Words | 256 |
| Operating Supply Voltage | 5V |
| Organization | 256X8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3mm |
| Write Cycle Time-Max (tWC) | 1.5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24C02C-I/MS Datasheet
Download the complete datasheet for Microchip 24C02C-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

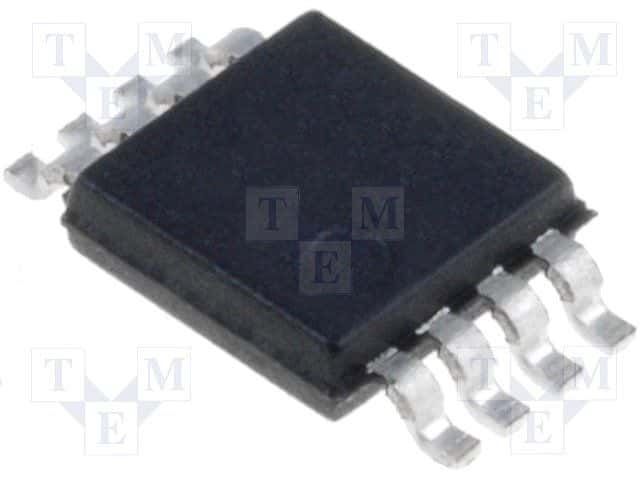

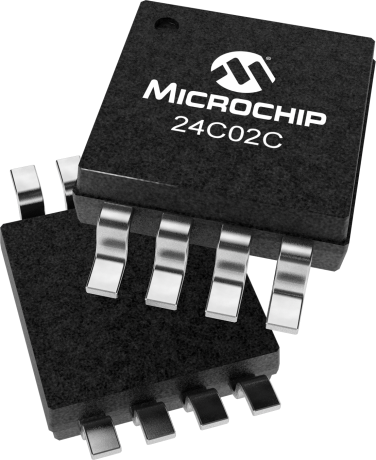

Product Images
