64Kb I2C/2-Wire Serial EEPROM, organized as 8K x 8, offers non-volatile memory with a maximum operating frequency of 400kHz. Featuring a 900ns access time and a 5ms maximum write cycle time, this surface mount component operates from a 4.5V to 6V supply range. The SOIC package, with tin matte contact plating, measures 5.38mm in length, 5.33mm in width, and 1.98mm in height. This lead-free component includes write protection and operates within a temperature range of -40°C to 85°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C65-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
64Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5.38mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
6V
Memory Size
64Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Words
8000
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Supply Current
3mA
Supply Voltage-Nom
6V
Width
5.33mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C65-I/SM Datasheet
Download the complete datasheet for Microchip 24C65-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

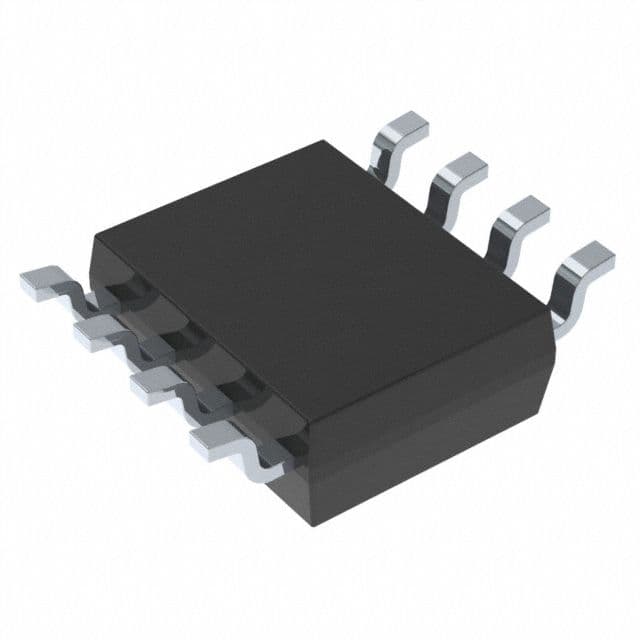

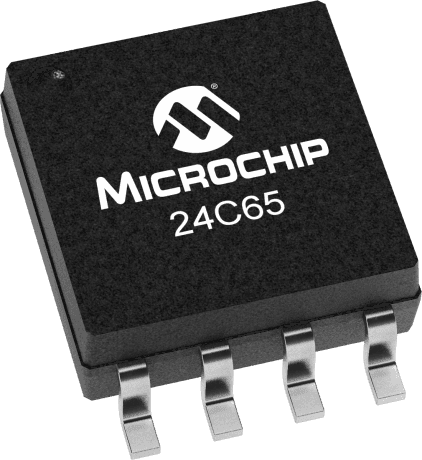

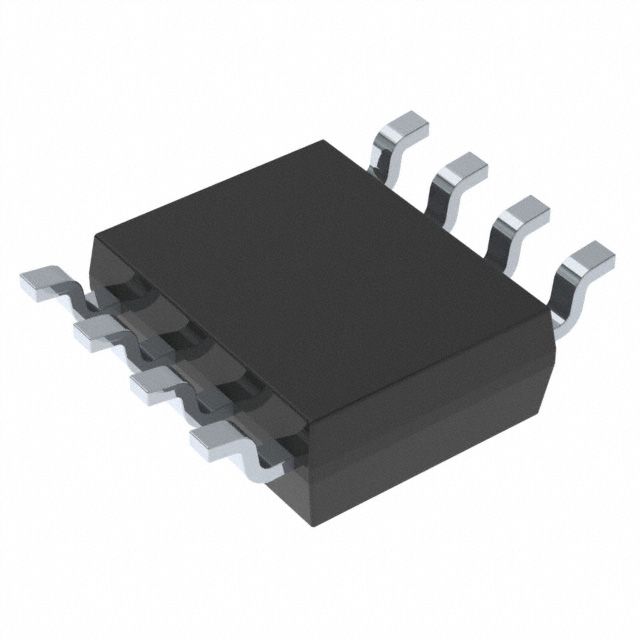

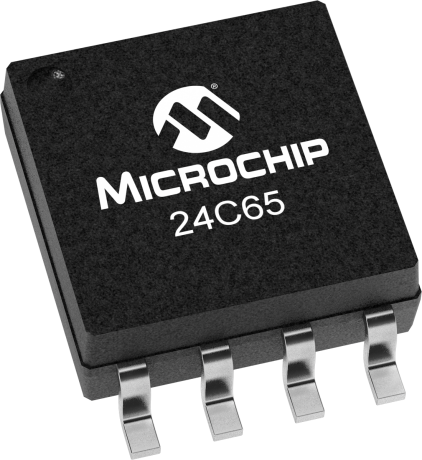

Product Images
