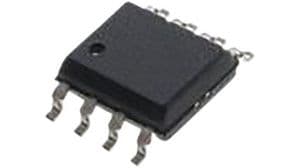

1Mb Serial EEPROM memory, 128K x 8 organization, featuring a 2-Wire/I2C interface with a maximum frequency of 1MHz. This surface mount component offers a fast 400ns access time and operates across a wide supply voltage range of 1.8V to 5.5V, with a nominal 5V operation. The SOIC package is tin/matte plated and designed for lead-free and RoHS compliant applications, with a maximum operating temperature of 85°C.
Frequency1MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24FC1025-I/SM technical specifications.
General
| Access Time | 400ns |
| Access Time-Max | 400ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 1Mb |
| Frequency | 1MHz |
| Height | 1.98mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 5.33mm |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 128KX8 |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Programming Voltage | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 5.38mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24FC1025-I/SM Datasheet
Download the complete datasheet for Microchip 24FC1025-I/SM to view detailed technical specifications.
