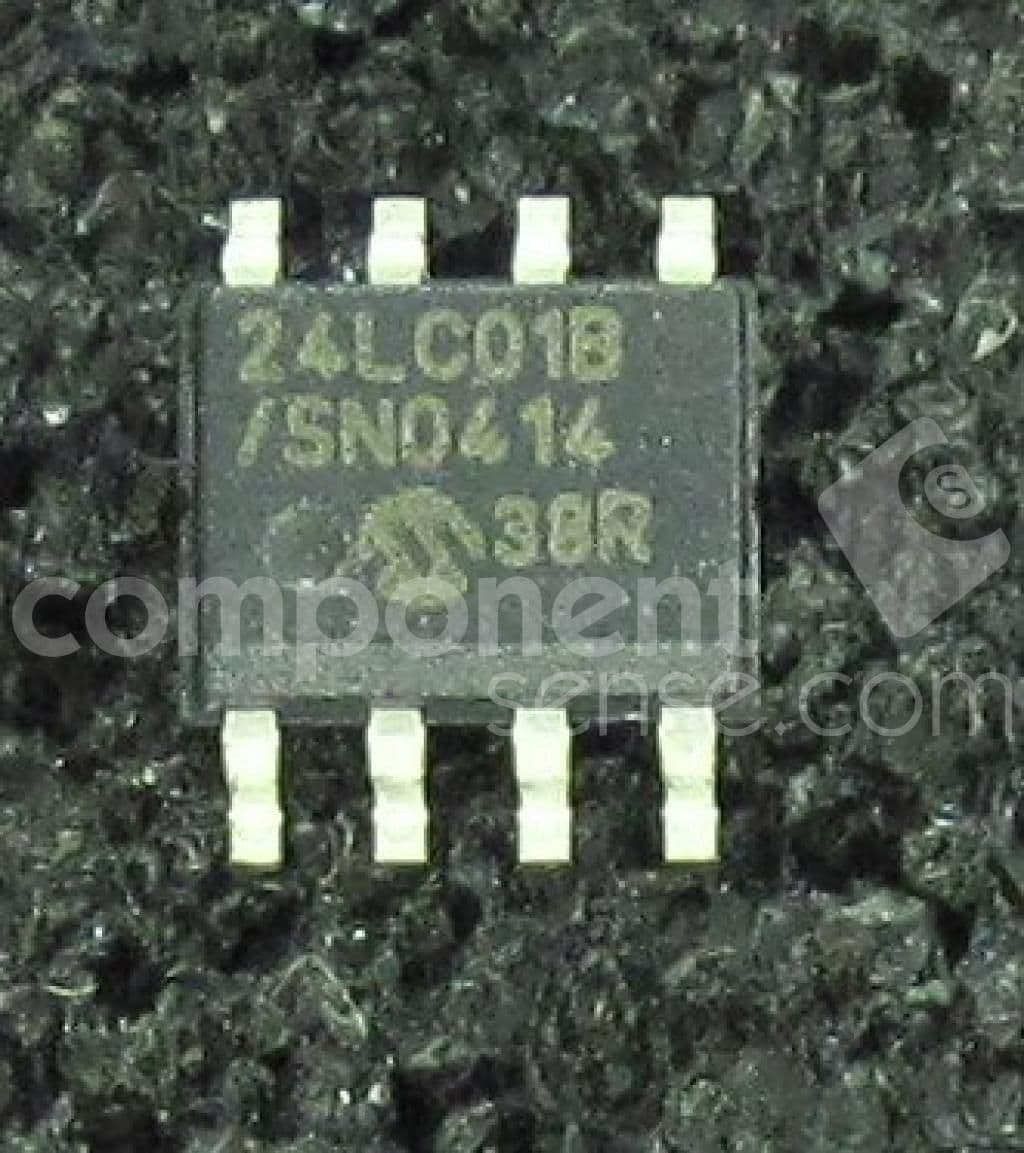

1Kb Serial EEPROM memory, 128 x 8 organization, featuring I2C and 2-Wire interface. Operates with supply voltages from 2.5V to 5.5V, supporting a maximum frequency of 400kHz. Offers a fast access time of 900ns and a write cycle time of 5ms. Packaged in a lead-free, RoHS-compliant 8-pin SOIC surface mount configuration.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC01B-I/SN technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
1Kb
Frequency
400kHz
Height
1.25mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
4.9mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
128X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC01B-I/SN Datasheet
Download the complete datasheet for Microchip 24LC01B-I/SN to view detailed technical specifications.
