2Kb I2C/2-Wire Serial EEPROM for surface mount applications. Features 256 x 8 organization with a 900ns access time and a maximum operating frequency of 400kHz. Operates from a 2.5V to 5.5V supply voltage range. Packaged in a lead-free, RoHS compliant SOIC package with tin-matte contact plating. Supports write protection and offers a maximum operating temperature of 125°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02B-E/SN technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
2Kb
Frequency
400kHz
Height
1.5mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
256
Organization
256X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC02B-E/SN Datasheet
Download the complete datasheet for Microchip 24LC02B-E/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

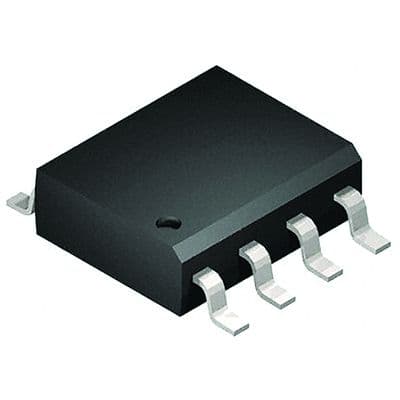

Product Images
