2Kb I2C/2-Wire Serial EEPROM, organized as 256 x 8 bits, features a 900ns access time and operates at up to 400kHz. This non-volatile memory component is housed in a lead-free, RoHS compliant SOIC package with matte tin contact plating. It supports a supply voltage range of 2.5V to 5.5V and includes write protection functionality. Designed for surface mounting, the component measures 4.9mm in length, 3.9mm in width, and 1.5mm in height.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02B-I/SNG technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
2Kb
Frequency
400kHz
Height
1.5mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
256
Organization
256X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
3.9mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC02B-I/SNG Datasheet
Download the complete datasheet for Microchip 24LC02B-I/SNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

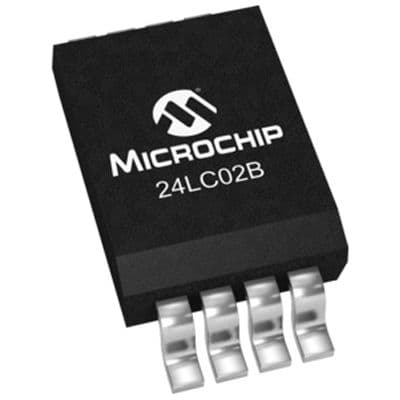

Product Images
