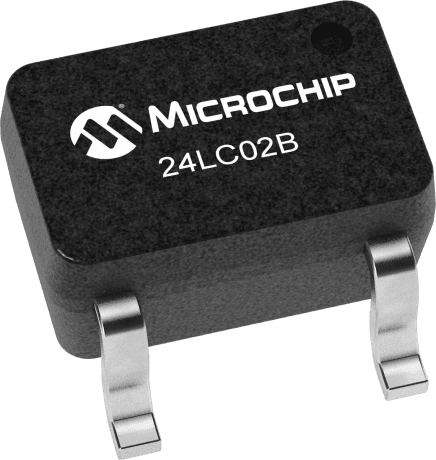

2Kb I2C/2-Wire Serial EEPROM for surface mount applications. Features a 256 x 8 organization with a maximum operating frequency of 400kHz and an access time of 900ns. Operates with a supply voltage range of 2.5V to 5.5V and a nominal 5V. Packaged in a 5-pin SC-70 (SC) package with tin, matte contact plating, this RoHS compliant component offers write protection and a maximum operating temperature of 125°C.
Frequency400kHz
PackageSC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02BT-E/LT technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SC
Contact Plating
Tin, Matte
Density
2Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
125°C
Memory Size
2Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
