2Kb Serial EEPROM with I2C/2-Wire interface, organized as 256 x 8 bits. Features a maximum operating frequency of 400kHz and an access time of 900ns. Operates from a 2.5V to 5.5V supply voltage range, with a nominal supply voltage of 5.5V. Encased in a 5-pin SC-70 (SC) surface-mount package with tin, matte contact plating. RoHS compliant and includes write protection.
Frequency400kHz
PackageSC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02BT-I/LT technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SC
Contact Plating
Tin, Matte
Density
2Kb
Frequency
400kHz
Height
1mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
2mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
1.25mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC02BT-I/LT Datasheet
Download the complete datasheet for Microchip 24LC02BT-I/LT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

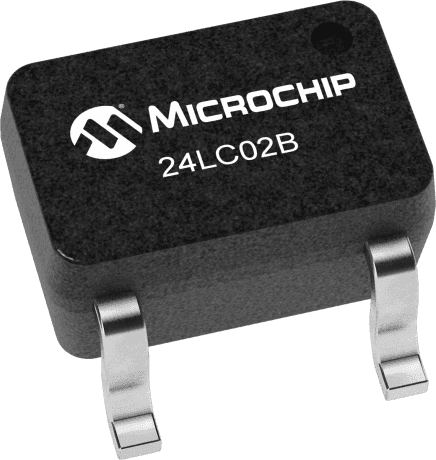

Product Images
