2Kb I2C/2-Wire Serial EEPROM, organized as 256 x 8, offers non-volatile memory with a maximum access time of 900ns and a maximum frequency of 400kHz. This surface mount component, housed in a SOT-23 package, operates within a supply voltage range of 2.5V to 5.5V and features write protection. Designed for reliability, it boasts a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
Frequency400kHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02BT-I/OT technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOT-23
Density
2Kb
Frequency
400kHz
Height
1.3mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
256X8
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
1.8mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC02BT-I/OT Datasheet
Download the complete datasheet for Microchip 24LC02BT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

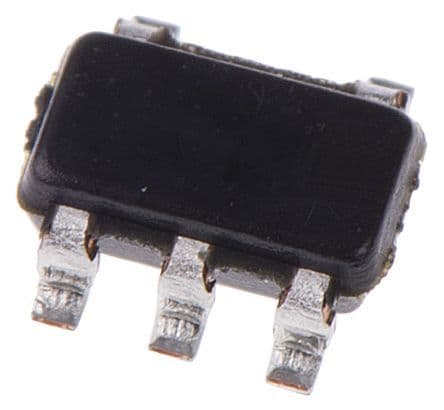

Product Images
