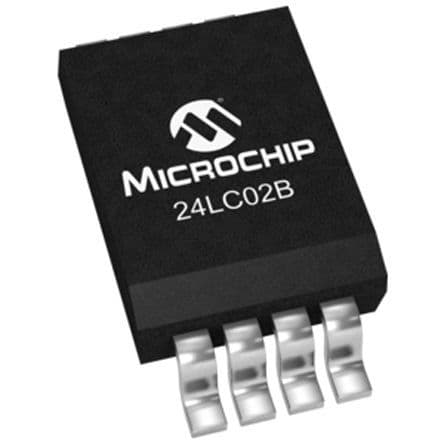

2Kb I2C/2-Wire Serial EEPROM with 256 x 8 organization. Features a 900ns access time and operates at up to 400kHz. This surface mount component is housed in a lead-free SOIC package, measuring 4.9mm in length, 3.9mm in width, and 1.5mm in height. Supports a supply voltage range of 2.5V to 5.5V and includes write protection.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC02BT-I/SN technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
2Kb
Frequency
400kHz
Height
1.5mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
4.9mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
256
Organization
256X8
Package Quantity
3300
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
