8Kb I2C/2-Wire Serial EEPROM, organized as 256 x 8, featuring a 400kHz maximum frequency and 900ns access time. This non-volatile memory component operates with a supply voltage range of 2.5V to 5.5V, a nominal 5.5V, and a maximum supply current of 3mA. Housed in a RoHS compliant, lead-free PDIP package with through-hole mounting, it offers write protection and a maximum write cycle time of 5ms. Operating temperature range is -40°C to 85°C.
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24LC08B-I/P technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
PDIP
Density
8Kb
Frequency
400kHz
Height
3.3mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
9.27mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
8Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Through Hole
Organization
256 x 8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
6.35mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC08B-I/P Datasheet
Download the complete datasheet for Microchip 24LC08B-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

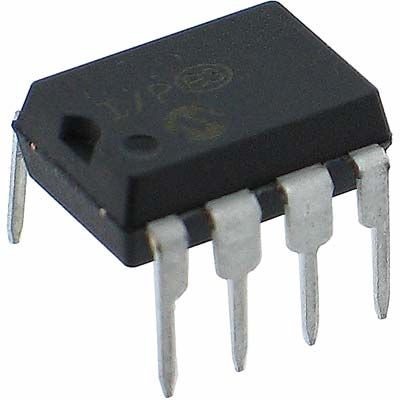

Product Images
