8Kb I2C/2-Wire Serial EEPROM for surface mount applications. Features a 400kHz maximum frequency and 900ns access time. Operates from 2.5V to 5.5V supply voltage with a 3mA supply current. Packaged in a 5-pin SOT-23 (PDSO5) with tape and reel packaging. RoHS compliant with write protection capabilities.
Frequency400kHz
PackageSOT-23
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC08BT-I/OT technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOT-23
Density
8Kb
Frequency
400kHz
Height
1.3mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Memory Size
8Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
256
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
1.8mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC08BT-I/OT Datasheet
Download the complete datasheet for Microchip 24LC08BT-I/OT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

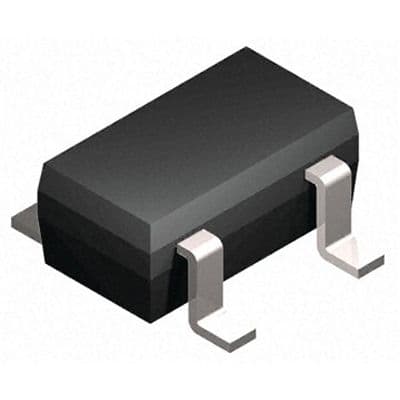

Product Images
