1Mb serial EEPROM memory, 128K x 8 organization, operating with I2C interface at up to 400kHz. Features a 900ns access time and a wide operating voltage range of 2.5V to 5.5V. Packaged in a lead-free, RoHS compliant 8-pin SOIC surface mount configuration. Supports write protection and operates from -40°C to 85°C.
Frequency400kHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC1025-I/SN technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | SOIC |
| Density | 1Mb |
| Frequency | 400kHz |
| Height | 1.75mm |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 128KX8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 6mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24LC1025-I/SN Datasheet
Download the complete datasheet for Microchip 24LC1025-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

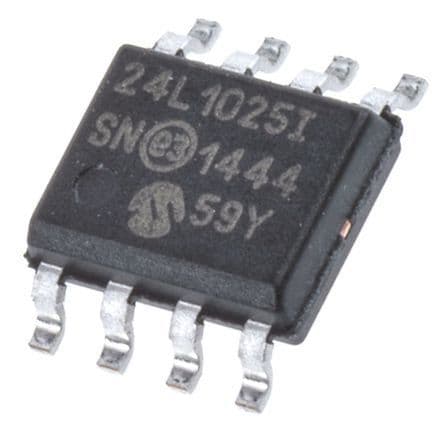

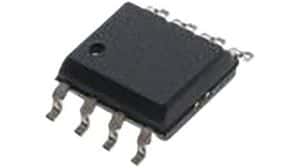

Product Images
