Microchip
24LC128-E/MF
16K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, DFN-8
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC128-E/MF technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
DFN
Contact Plating
Tin, Matte
Density
128Kb
Frequency
400kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
128Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
16KX8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC128-E/MF Datasheet
Download the complete datasheet for Microchip 24LC128-E/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

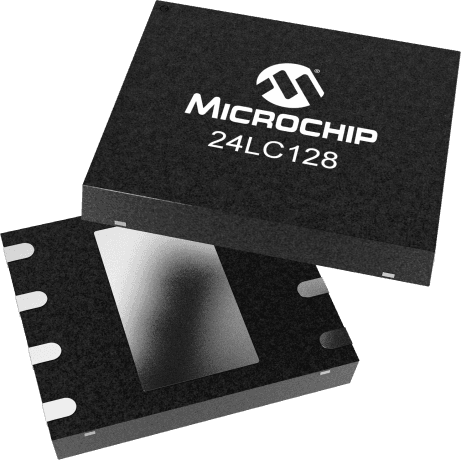

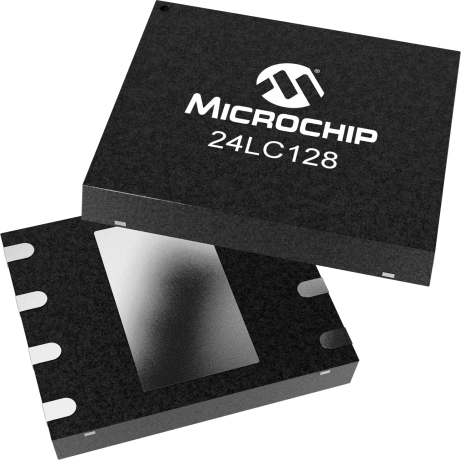

Product Images
