128Kb I2C/2-Wire Serial EEPROM, organized as 16K x 8, offers a maximum operating frequency of 400kHz with a 900ns access time. This surface-mount component features a SOIC package with tin-matte contact plating, operating within a 2.5V to 5.5V supply voltage range. It supports write protection and is RoHS compliant, suitable for applications requiring reliable non-volatile data storage.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC128-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
128Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
5.33mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
16KX8
Package Quantity
90
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
5.38mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC128-I/SM Datasheet
Download the complete datasheet for Microchip 24LC128-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

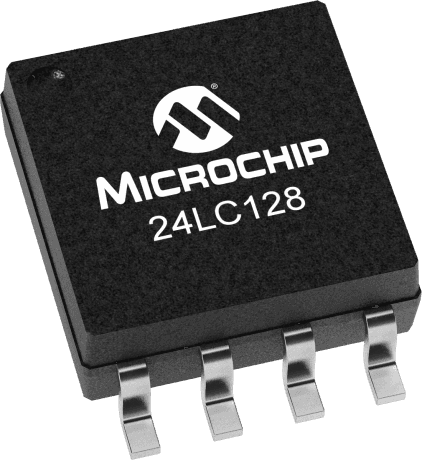

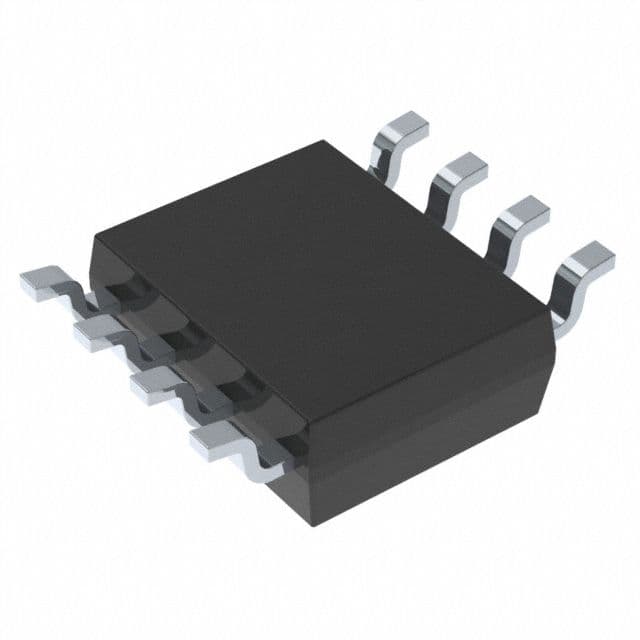

Product Images
