Microchip
24LC16BT-I/MC
2K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MO-229, DFN-8
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC16BT-I/MC technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
DFN
Density
16Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Memory Size
16Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Package Quantity
3300
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC16BT-I/MC Datasheet
Download the complete datasheet for Microchip 24LC16BT-I/MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

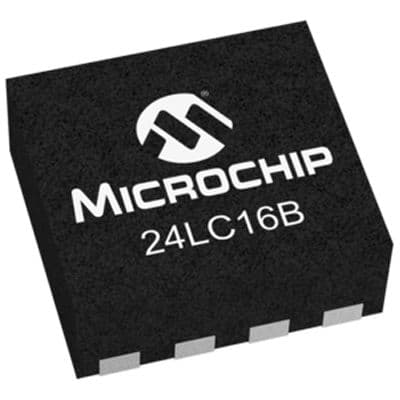

Product Images
