Microchip
24LC16BT-I/MNY
2K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TDFN-8
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC16BT-I/MNY technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Contact Plating
Gold
Density
16Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Package Quantity
3300
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC16BT-I/MNY Datasheet
Download the complete datasheet for Microchip 24LC16BT-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

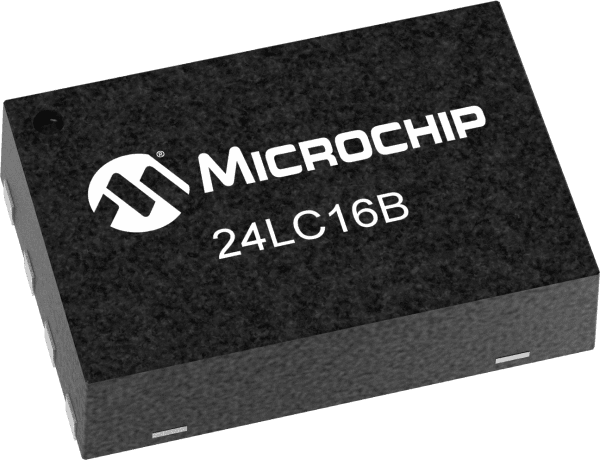

Product Images
