256Kb Serial EEPROM with I2C/2-Wire interface, organized as 32K x 8. Features a maximum operating frequency of 400kHz and an access time of 900ns. Operates from a 2.5V to 5.5V supply voltage range. Housed in a 6mm x 5mm DFN package with tin/matte contact plating, suitable for surface mount applications. RoHS compliant with a maximum operating temperature of 85°C.
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC256-I/MF technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
DFN
Contact Plating
Tin, Matte
Density
256Kb
Frequency
400kHz
Height
0.95mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
32000
Organization
32KX8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
6mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC256-I/MF Datasheet
Download the complete datasheet for Microchip 24LC256-I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

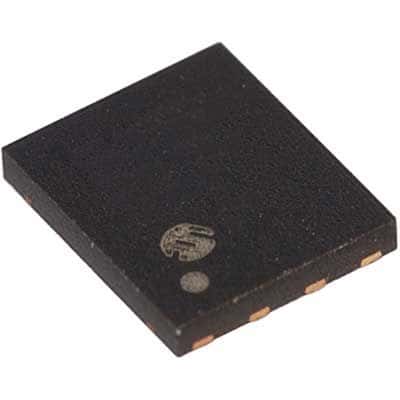

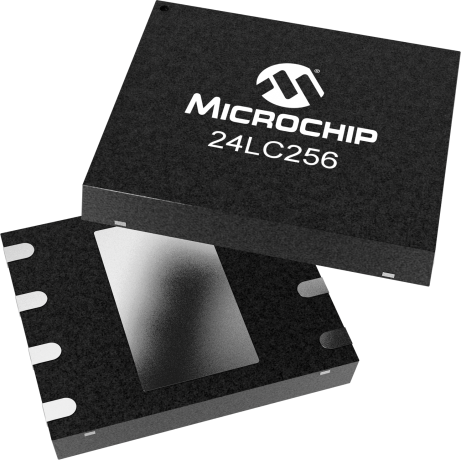

Product Images
