Microchip
24LC256T-I/MF
32K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 6 X 5 MM, ROHS COMPLIANT, PLASTIC, DFN-8
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC256T-I/MF technical specifications.
General
Access Time-Max
900ns
Package/Case
DFN
Contact Plating
Tin, Matte
Density
256Kb
Frequency
400kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
256KB
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
32KX8
Packaging
Tape and Reel
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC256T-I/MF Datasheet
Download the complete datasheet for Microchip 24LC256T-I/MF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

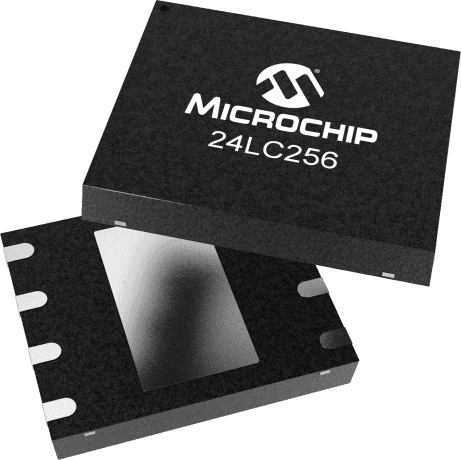

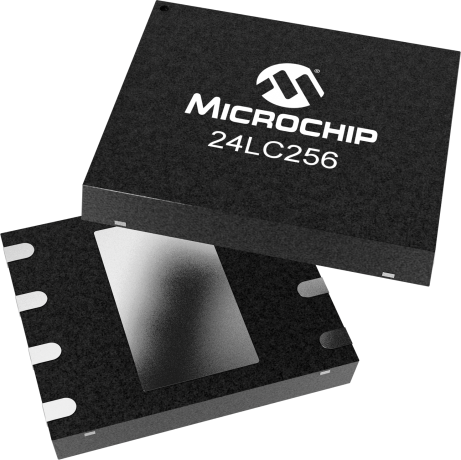

Product Images
