32Kb Serial EEPROM memory, 4K x 8 organization, featuring I2C interface with a maximum frequency of 400kHz. This surface mount component offers a 900ns access time and operates across a wide voltage range of 2.5V to 5.5V. It supports write protection and has a maximum supply current of 3mA. Packaged in an 8-pin SOIC with tin/matte plating, it operates from -40°C to 85°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC32A-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
32Kb
Frequency
400kHz
Height
1.98mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
5.26mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
4000
Organization
4KX8
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
5.24mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC32A-I/SM Datasheet
Download the complete datasheet for Microchip 24LC32A-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

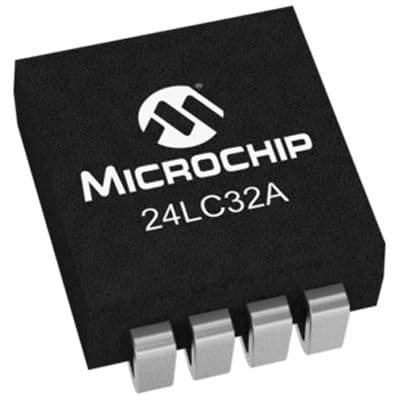

Product Images
