32Kb I2C/2-Wire Serial EEPROM, organized as 4K x 8, featuring a 400kHz maximum frequency and 900ns access time. This surface mount component operates with a supply voltage range of 2.5V to 5.5V and a maximum supply current of 3mA. Housed in a RoHS compliant TSSOP-8 package with tin/matte contact plating, it offers write protection and a write cycle time of 5ms. Operating temperature range is -40°C to 85°C.
Frequency400kHz
PackageTSSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC32A-I/ST technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
32Kb
Frequency
400kHz
Height
1mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
3mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
4KX8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Width
4.4mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC32A-I/ST Datasheet
Download the complete datasheet for Microchip 24LC32A-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

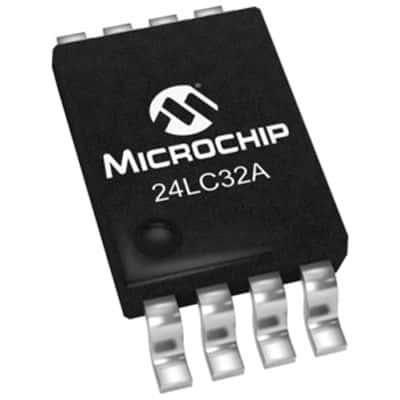

Product Images
