Microchip
24LC32AFT-E/MNY
4K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 2 X 3 MM, 0.75 MM HEIGHT, PLASTIC, TDFN-8
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC32AFT-E/MNY technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Contact Plating
Gold
Density
32Kb
Frequency
400kHz
Interface
I2C, Serial
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
4KX8
Package Quantity
3300
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
3mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC32AFT-E/MNY Datasheet
Download the complete datasheet for Microchip 24LC32AFT-E/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

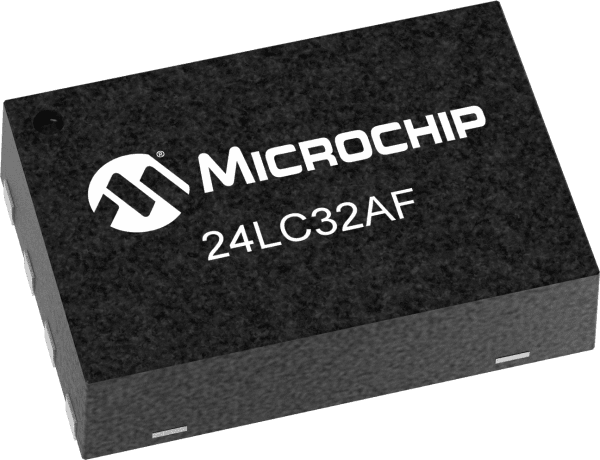

Product Images
