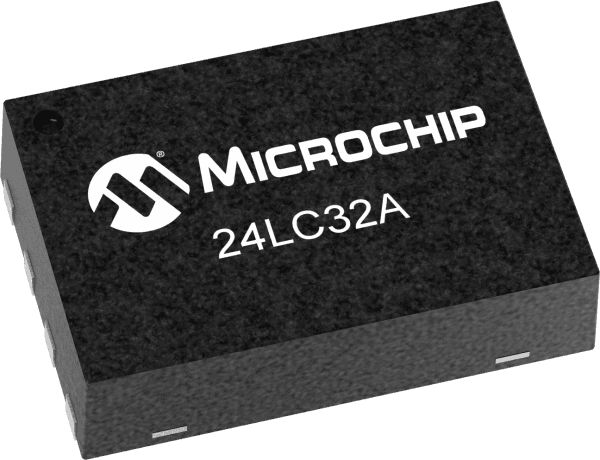

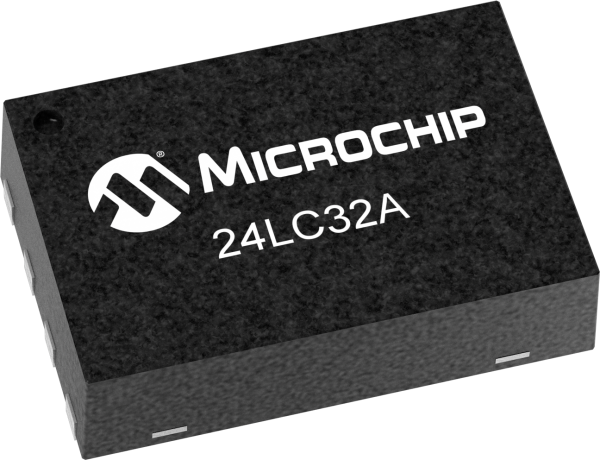

32Kb I2C/2-Wire Serial EEPROM, organized as 4K x 8, featuring a 900ns access time and a maximum operating frequency of 400kHz. This surface mount component operates from a 2.5V to 5.5V supply, with a typical operating voltage of 5V. Encased in a RoHS compliant, gold-plated DFN-8 package measuring 2mm x 3mm x 0.73mm, it supports write protection and has a supply current of 3mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip 24LC32AT-I/MNY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip 24LC32AT-I/MNY technical specifications.
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | DFN |
| Contact Plating | Gold |
| Density | 32Kb |
| Frequency | 400kHz |
| Height | 0.73mm |
| Interface | 2-Wire, I2C, Serial |
| Length | 2mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 4KX8 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Width | 3mm |
| Write Protection | YES |
| RoHS | Compliant |
