32Kb I2C/2-Wire Serial EEPROM, organized as 4K x 8, offers 900ns access time and operates at up to 400kHz. This surface mount device, housed in an SOIC package, supports a supply voltage range of 2.5V to 5.5V and is RoHS compliant. It features write protection and a maximum operating temperature of 85°C.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC32AT-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
32Kb
Frequency
400kHz
Interface
I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
32Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
4KX8
Package Quantity
2100
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC32AT-I/SM Datasheet
Download the complete datasheet for Microchip 24LC32AT-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

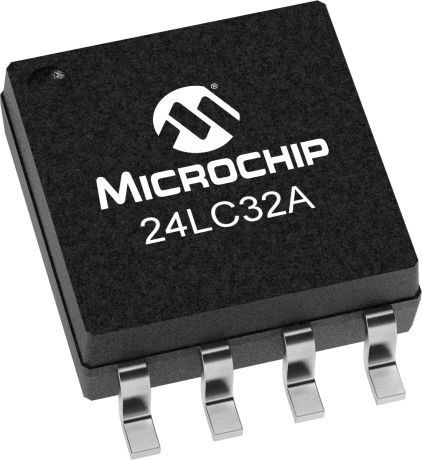

Product Images
