512Kb Serial EEPROM, 64K x 8 organization, featuring I2C 2-Wire interface with a maximum frequency of 400kHz. This non-volatile memory offers a wide supply voltage range of 2.5V to 5.5V and a fast access time of 900ns. Designed for surface mount applications, it operates within a temperature range of -40°C to 85°C and is RoHS compliant. Includes write protection capabilities.
Frequency400kHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC512-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
SOIC
Density
512Kb
Frequency
400kHz
Height
1.88mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5.21mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
512Kb
Memory Type
Non-Volatile, , EEPROM
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
64KX8
Package Quantity
90
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
5.28mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC512-I/SM Datasheet
Download the complete datasheet for Microchip 24LC512-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

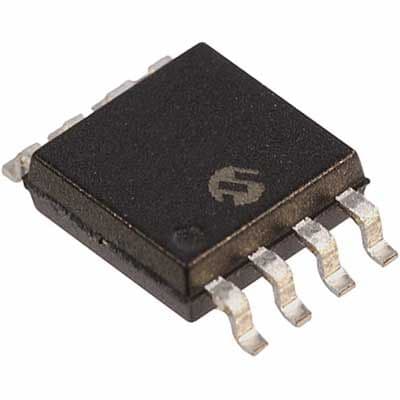

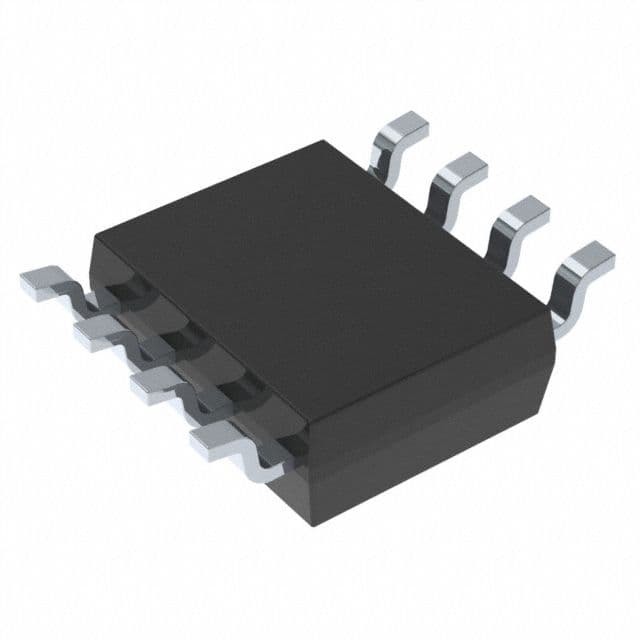

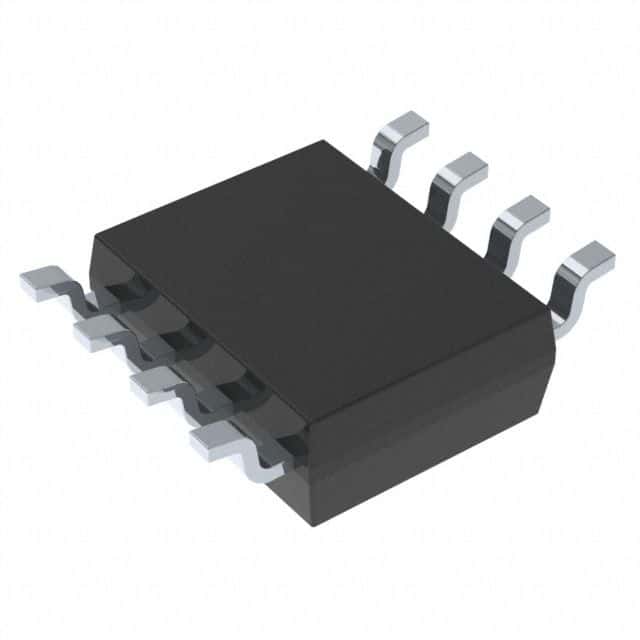

Product Images
