64Kb I2C/2-Wire Serial EEPROM with 8K x 8 organization. Features a maximum operating frequency of 400kHz and an access time of 900ns. Operates from a 2.5V to 5.5V supply voltage range, with a typical operating voltage of 5V. Packaged in a RoHS compliant, lead-free PDIP-8 package suitable for through-hole mounting. Includes write protection and a maximum operating temperature of 85°C.
Frequency400kHz
PackagePDIP
Current3mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 24LC64F-I/P technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 64Kb |
| Frequency | 400kHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 8KX8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24LC64F-I/P Datasheet
Download the complete datasheet for Microchip 24LC64F-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

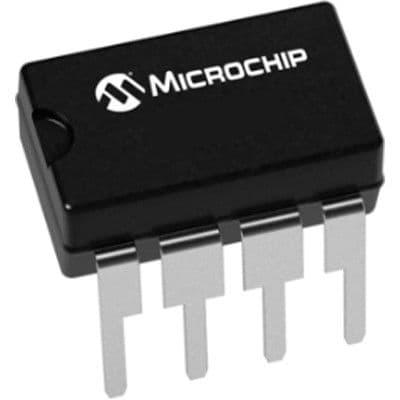

Product Images
