64Kb Serial EEPROM memory, organized as 8K x 8, featuring I2C/2-Wire serial interface with a maximum frequency of 400kHz. This surface mount component offers a fast access time of 900ns and operates within a voltage range of 2.5V to 5.5V. It is housed in a DFN package with Tin/Matte contact plating and supports write protection. Operating temperature range is -40°C to 85°C.
Frequency400kHz
PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24LC64T-I/MC technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
DFN
Contact Plating
Tin, Matte
Density
64Kb
Frequency
400kHz
Interface
2-Wire, I2C, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
64Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
8KX8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24LC64T-I/MC Datasheet
Download the complete datasheet for Microchip 24LC64T-I/MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

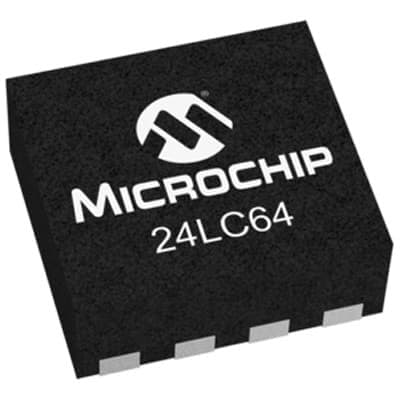

Product Images
