2Kb I2C/2-Wire Serial EEPROM, 256 x 8 organization, offering 3500ns access time. Features a 400kHz maximum frequency, 1.5V to 3.6V operating supply voltage range, and 3.6V programming voltage. Packaged in a TDFN-8 surface mount package with gold contact plating. RoHS compliant and lead-free.
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24VL024T/MNY technical specifications.
General
| Access Time | 3500ns |
| Access Time-Max | 3.5us |
| Contact Plating | Gold |
| Density | 2Kb |
| Frequency | 400kHz |
| Height | 0.73mm |
| Interface | 2-Wire, I2C, Serial |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -20°C |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Words | 256 |
| Operating Supply Voltage | 3.3V |
| Organization | 256X8 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Programming Voltage | 3.6V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 3.6V |
| Termination | SMD/SMT |
| Width | 3mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24VL024T/MNY Datasheet
Download the complete datasheet for Microchip 24VL024T/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

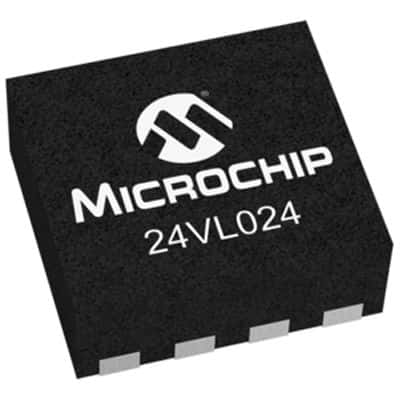

Product Images
