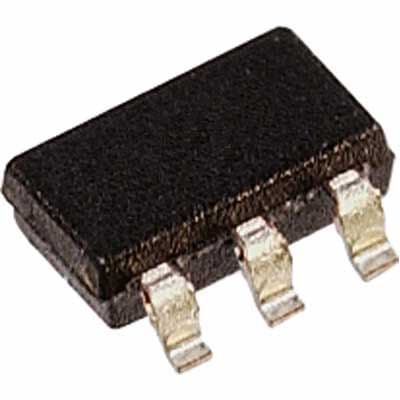

1Kb SPI serial EEPROM with 128x8 organization. Features 50ns access time, operating from 1.8V to 5.5V with a 5V nominal supply. Surface mountable in a 6-pin SOT-23 package, this RoHS compliant component offers a 10MHz maximum frequency and 5mA supply current. Includes write protection and operates within a -40°C to 85°C temperature range.
Frequency10MHz
PackageSOT-23
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA010AT-I/OT technical specifications.
General
Access Time
50ns
Access Time-Max
100ns
Package/Case
SOT-23
Contact Plating
Tin, Matte
Density
1Kb
Frequency
10MHz
Height
1.1mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
2.95mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
3000
Packaging
Tape and Reel
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Termination
SMD/SMT
Width
1.63mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
