2Kb SPI bus serial EEPROM with 256 x 8 organization. Features 50ns access time and operates at up to 10MHz. Housed in a through-hole PDIP package, this memory component supports a wide supply voltage range from 1.8V to 5.5V and includes write protection. RoHS compliant and designed for operation between -40°C and 85°C.
Frequency10MHz
PackagePDIP
Current5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25AA020A-I/P technical specifications.
General
Access Time
50ns
Access Time-Max
50ns
Package/Case
PDIP
Density
2Kb
Frequency
10MHz
Height
3.3mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
9.4mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Through Hole
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Width
6.35mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA020A-I/P Datasheet
Download the complete datasheet for Microchip 25AA020A-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

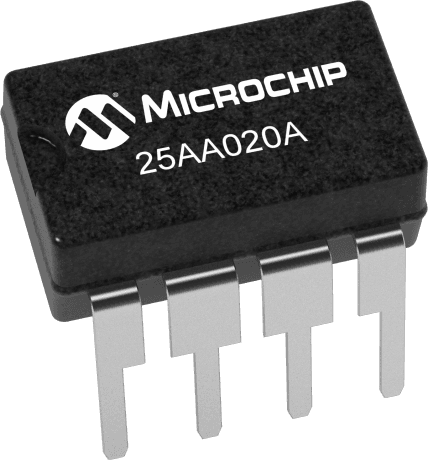

Product Images
