Technical Specifications
Microchip 25AA020AT-I/MNY technical specifications.
General
Access Time-Max
50ns
Contact Plating
Gold
Density
2Kb
Frequency
10MHz
Height
0.75mm
Interface
SPI, Serial
Length
2mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2KB
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of Words
256
Organization
256X8
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
5mA
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA020AT-I/MNY Datasheet
Download the complete datasheet for Microchip 25AA020AT-I/MNY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

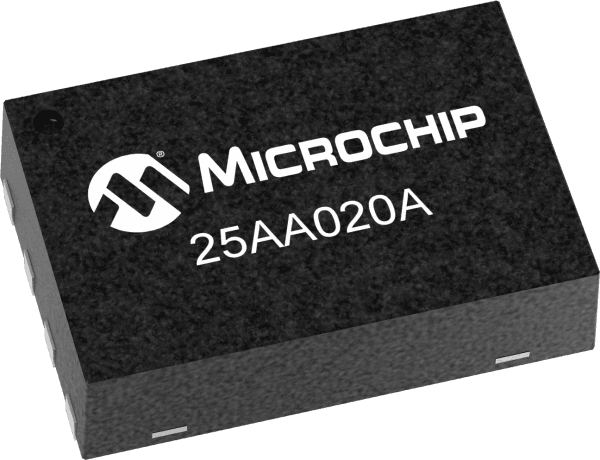

Product Images
