2Kb SPI serial EEPROM for surface mount applications. Features 50ns access time, 10MHz maximum frequency, and a 256 x 8 organization. Operates from 1.8V to 5.5V supply voltage with a nominal 5V. Packaged in a RoHS compliant, lead-free SOIC package with tin matte contact plating. Includes write protection and a 5ms maximum write cycle time.
Frequency10MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA02E48T-I/SN technical specifications.
General
Access Time
50ns
Access Time-Max
50ns
Package/Case
SOIC
Contact Plating
Tin, Matte
Density
2Kb
Frequency
10MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2Kb
Memory Type
EEPROM, , Non-Volatile
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
256X8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA02E48T-I/SN Datasheet
Download the complete datasheet for Microchip 25AA02E48T-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

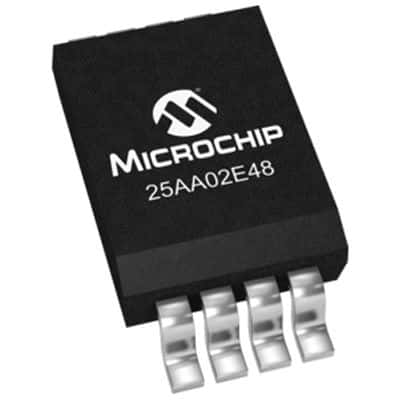

Product Images
