4Kb SPI serial EEPROM, 512 x 8 organization, offering 50ns access time. Features a 10MHz maximum frequency and operates from 1.8V to 5.5V supply voltage. Packaged in a lead-free, RoHS compliant SOIC N (SOIC-8) surface mount package with tin matte contact plating. Ideal for applications requiring reliable non-volatile data storage.
Frequency10MHz
PackageSOIC N
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA040AT-I/SN technical specifications.
General
Access Time
50ns
Access Time-Max
50ns
Package/Case
SOIC N
Contact Plating
Tin, Matte
Density
4Kb
Frequency
10MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
512X8
Package Quantity
3300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA040AT-I/SN Datasheet
Download the complete datasheet for Microchip 25AA040AT-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

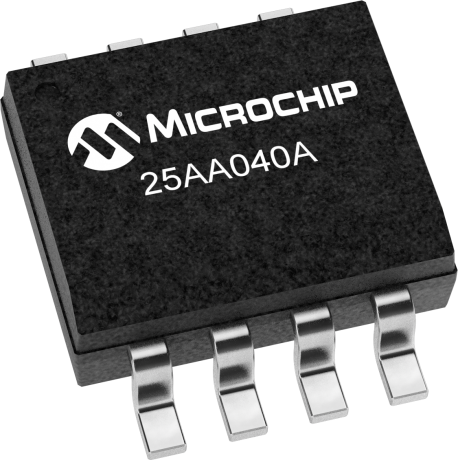

Product Images
