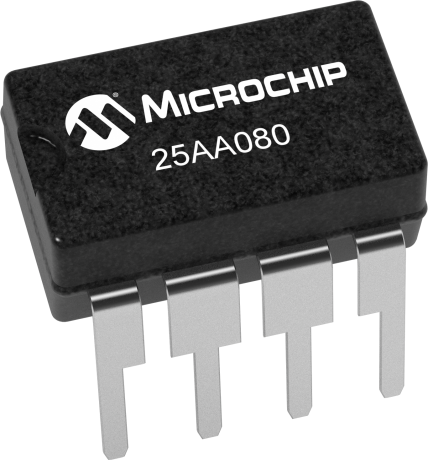

The 25AA080-I/P is an 8Kb SPI EEPROM from Microchip, featuring a 1KX8 organization and a maximum operating temperature of 85°C. It operates at a maximum supply voltage of 5.5V and a minimum supply voltage of 1.8V, with a maximum frequency of 1MHz. The device is packaged in a PDIP-8 package and is RoHS compliant. It has a memory size of 8Kb and a write protection feature.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip 25AA080-I/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip 25AA080-I/P technical specifications.
| Access Time | 475ns |
| Access Time-Max | 475ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 8Kb |
| Frequency | 1MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 1.8V |
| Organization | 1KX8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Write Protection | YES |
| RoHS | Compliant |
