8Kb SPI serial EEPROM with 1K x 8 organization, offering 50ns access time. Features a 10MHz maximum frequency and operates across a wide temperature range of -40°C to 85°C. This through-hole component utilizes a PDIP-8 package with tin-matte plating and supports a supply voltage range of 1.8V to 5.5V. Includes write protection and is RoHS compliant.
Frequency10MHz
PackagePDIP
Current6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25AA080A-I/P technical specifications.
General
Access Time
50ns
Access Time-Max
160ns
Package/Case
PDIP
Contact Plating
Tin, Matte
Density
8Kb
Frequency
10MHz
Height
3.3mm
Interface
SPI, Serial
Length
9.27mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
8Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Through Hole
Organization
1KX8
Package Quantity
60
Packaging
Rail/Tube
Programming Voltage
5.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
6mA
Width
6.35mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25AA080A-I/P Datasheet
Download the complete datasheet for Microchip 25AA080A-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

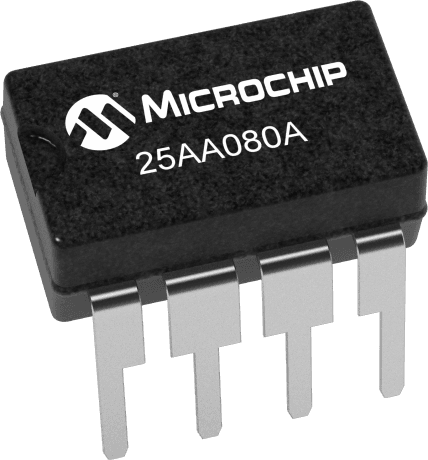

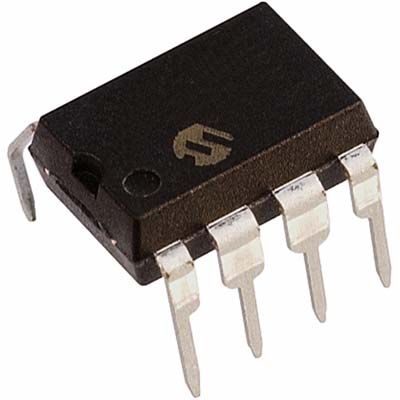

Product Images
