8Kb SPI serial EEPROM for surface mount applications. Features 1KX8 organization, 50ns access time, and operates at up to 10MHz. Supports a wide supply voltage range from 1.8V to 5.5V, with a maximum operating temperature of 85°C. Packaged in a RoHS compliant TSSOP-8 with tin/matte plating. Includes write protection functionality.
Frequency10MHz
PackageTSSOP
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25AA080A-I/ST technical specifications.
General
| Access Time | 50ns |
| Access Time-Max | 160ns |
| Package/Case | TSSOP |
| Contact Plating | Tin, Matte |
| Density | 8Kb |
| Frequency | 10MHz |
| Height | 1mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Frequency | 10MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 1KX8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Width | 4.4mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 25AA080A-I/ST Datasheet
Download the complete datasheet for Microchip 25AA080A-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

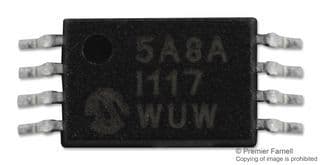

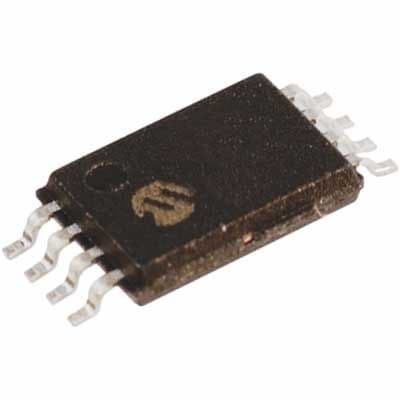

Product Images
