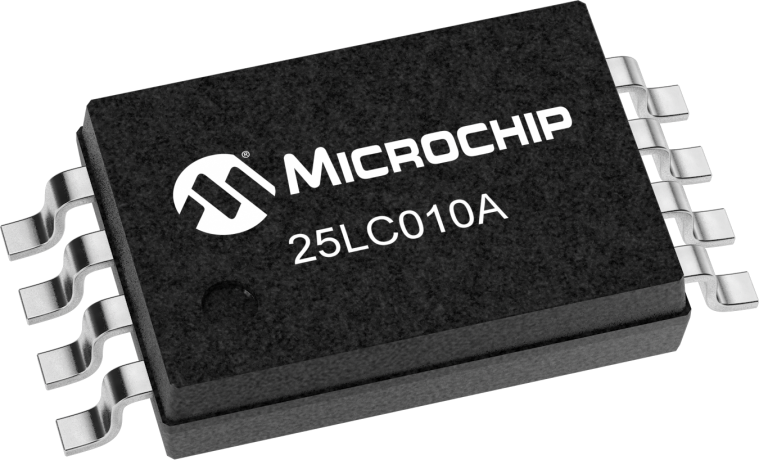

Microchip
25LC010AT-E/ST
128 X 8 SPI BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
Frequency10MHz
PackageTSSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25LC010AT-E/ST technical specifications.
General
Access Time
50ns
Access Time-Max
100ns
Package/Case
TSSOP
Density
1Kb
Frequency
10MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
10MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC010AT-E/ST Datasheet
Download the complete datasheet for Microchip 25LC010AT-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
