4Kb SPI bus serial EEPROM with 512 x 8 organization. Features 230ns access time and a maximum operating frequency of 2MHz. Operates from 2.5V to 5.5V supply voltage. Packaged in an 8-pin SOIC (SOIC-8) surface-mount package. RoHS compliant and lead-free.
Frequency2MHz
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Microchip 25LC040-I/SN technical specifications.
General
Access Time
230ns
Access Time-Max
230ns
Package/Case
SOIC
Density
4Kb
Frequency
2MHz
Height
1.55mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
5mm
Max Frequency
2MHz
Max Operating Temperature
85°C
Memory Size
4Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Words
512
Organization
512X8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
3.99mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC040-I/SN Datasheet
Download the complete datasheet for Microchip 25LC040-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

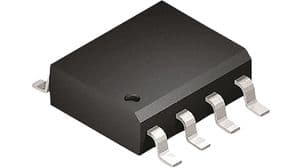

Product Images
