8Kb SPI Serial EEPROM with 1K x 8 organization. Features 230ns access time and a maximum operating frequency of 2MHz. Operates from 2.5V to 5.5V supply voltage with a 5mA supply current. Packaged in a lead-free, RoHS-compliant SOIC package. Supports SPI interface and write protection.
Frequency2MHz
PackageSOIC
Current5mA
Quick Jump:
Technical Specifications
Microchip 25LC080/SN technical specifications.
General
Access Time
230ns
Access Time-Max
230ns
Package/Case
SOIC
Density
8Kb
Frequency
2MHz
Height
1.25mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
2MHz
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
8Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
0°C
Min Supply Voltage
2.5V
Organization
1KX8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC080/SN Datasheet
Download the complete datasheet for Microchip 25LC080/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

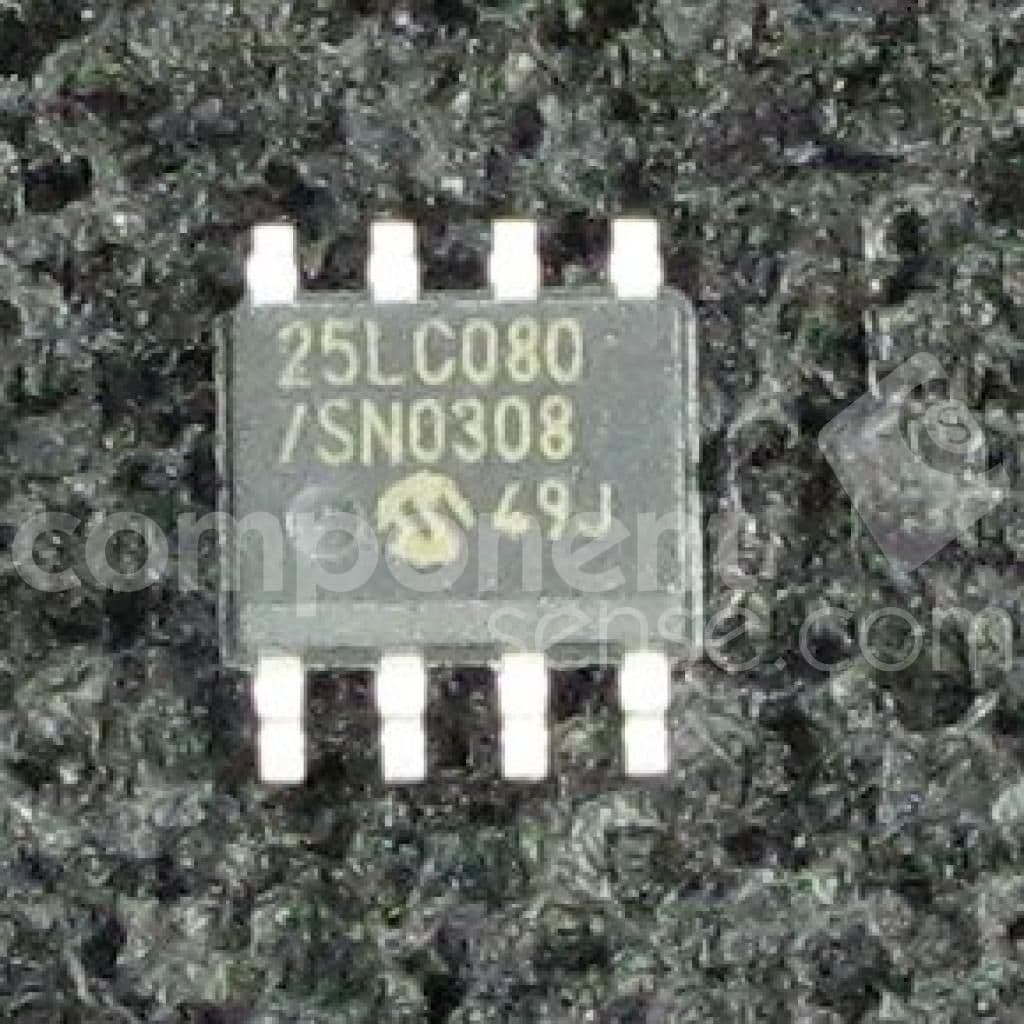

Product Images
