Microchip
25LC1024-E/P
128K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Frequency20MHz
PackagePDIP
Current10mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25LC1024-E/P technical specifications.
General
Access Time
50ns
Access Time-Max
50ns
Package/Case
PDIP
Density
1Mb
Frequency
20MHz
Interface
SPI, Serial
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
1Mb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Organization
128KX8
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC1024-E/P Datasheet
Download the complete datasheet for Microchip 25LC1024-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

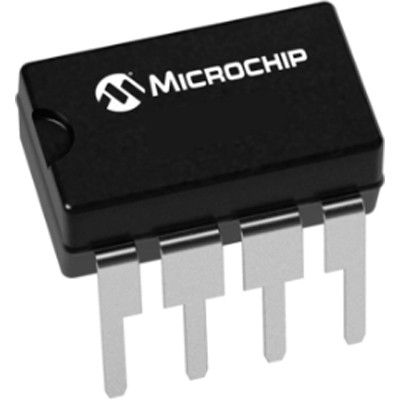

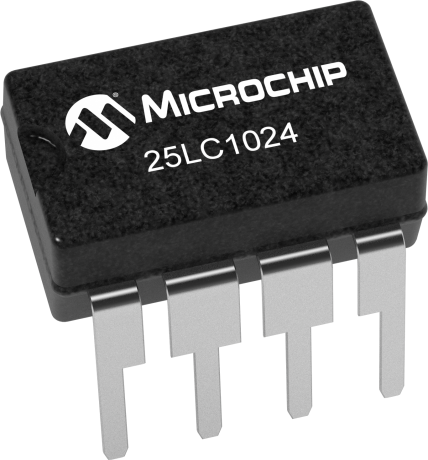

Product Images
