1Mb Serial SPI EEPROM memory, 128K x 8 organization, featuring a 50ns access time and a maximum operating frequency of 20MHz. This through-hole component operates with a supply voltage range of 2.5V to 5.5V and is housed in an 8-pin PDIP package. It supports serial SPI interface and includes write protection. The device is RoHS compliant and operates across a temperature range of -40°C to 85°C.
Frequency10MHz
PackagePDIP
Current10mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25LC1024-I/P technical specifications.
General
| Access Time | 50ns |
| Access Time-Max | 50ns |
| Package/Case | PDIP |
| Density | 1Mb |
| Frequency | 10MHz |
| Height | 3.3mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 1Mb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Organization | 128KX8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Supply Voltage-Nom | 5.5V |
| Width | 6.35mm |
| Write Cycle Time-Max (tWC) | 6ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 25LC1024-I/P Datasheet
Download the complete datasheet for Microchip 25LC1024-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

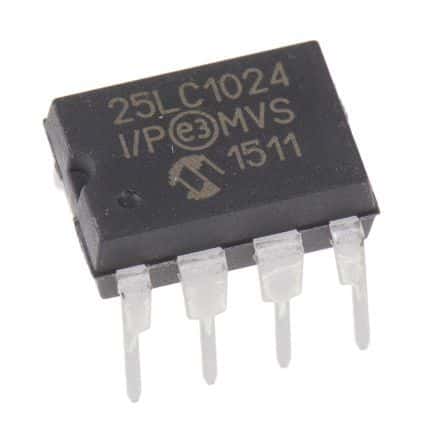

Product Images
