Frequency10MHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications

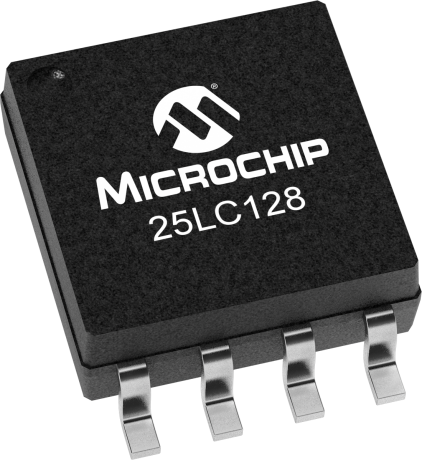

Microchip 25LC128-I/SM technical specifications.
General
Access Time-Max
50ns
Density
128Kb
Frequency
10MHz
Interface
SPI, Serial
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
128Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
16KX8
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC128-I/SM Datasheet
Download the complete datasheet for Microchip 25LC128-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
