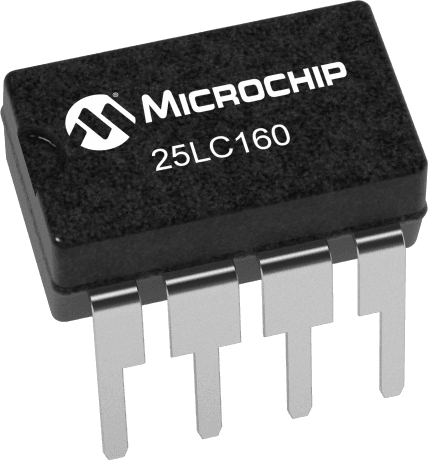

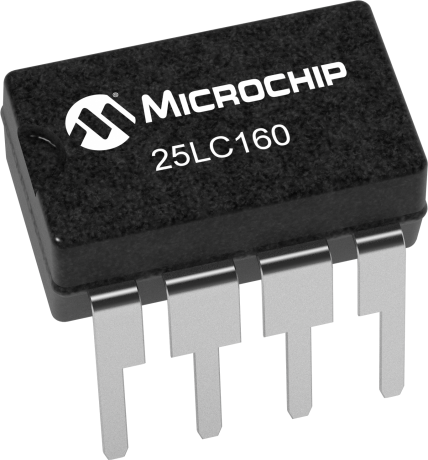

The 25LC160-I/P is a 16Kb SPI EEPROM with a 2KX8 organization and a maximum frequency of 2MHz. It operates within a temperature range of -40°C to 85°C and can be supplied with a voltage between 2.5V and 5.5V. The device has a supply current of 5mA and is available in a PDIP-8 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip 25LC160-I/P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip 25LC160-I/P technical specifications.
| Access Time | 5ms |
| Access Time-Max | 230ns |
| Package/Case | PDIP |
| Density | 16Kb |
| Frequency | 2MHz |
| Height | 3.3mm |
| Interface | SPI, Serial |
| Length | 9.27mm |
| Max Frequency | 2MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 2.5V |
| Organization | 2KX8 |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Supply Current | 5mA |
| Width | 6.35mm |
| Write Protection | YES |
| RoHS | Compliant |
