16Kb Serial EEPROM memory with 2K x 8 organization, featuring a 100ns access time. Operates via SPI interface at up to 5MHz, with a supply voltage range of 2.5V to 5.5V. This non-volatile memory component is housed in a lead-free, RoHS compliant SOIC package, suitable for surface mounting. Maximum operating temperature is 85°C.
Frequency10MHz
PackageSOIC
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25LC160A-I/SN technical specifications.
General
Access Time
100ns
Access Time-Max
100ns
Package/Case
SOIC
Density
16Kb
Frequency
10MHz
Height
1.25mm
Interface
SPI, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
5MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
2KX8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
6mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC160A-I/SN Datasheet
Download the complete datasheet for Microchip 25LC160A-I/SN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

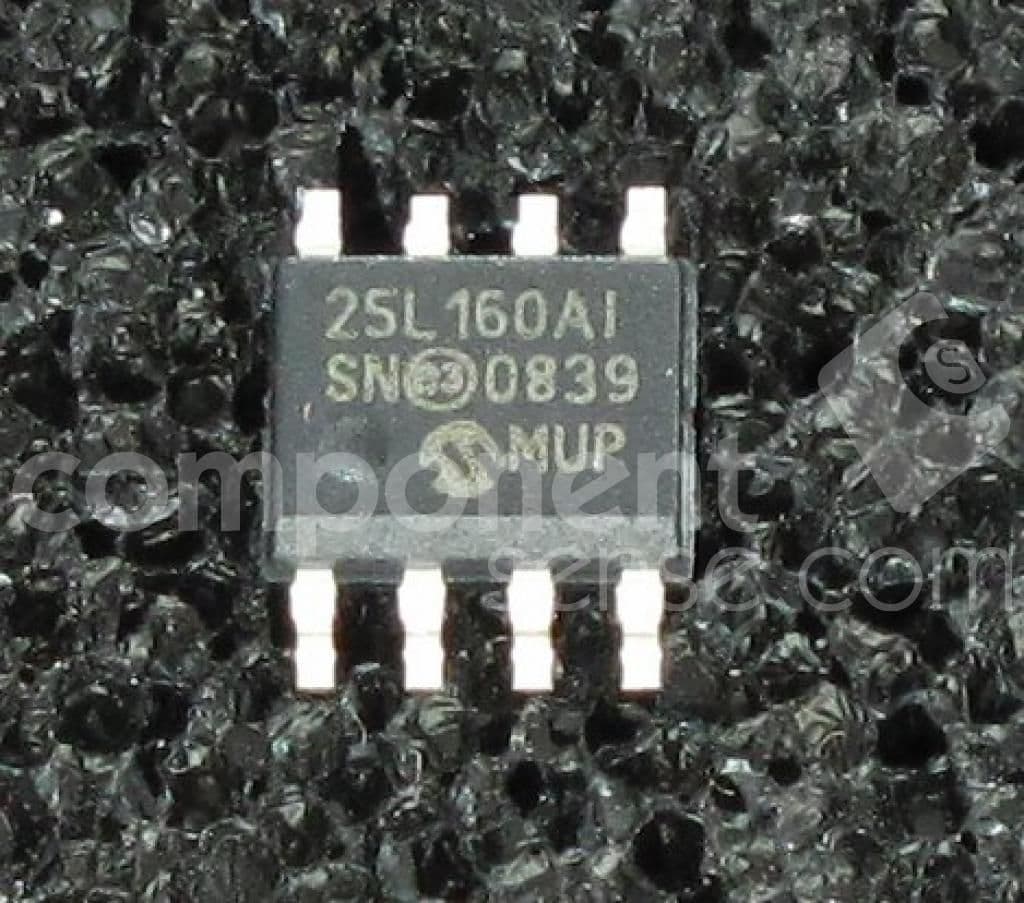

Product Images
