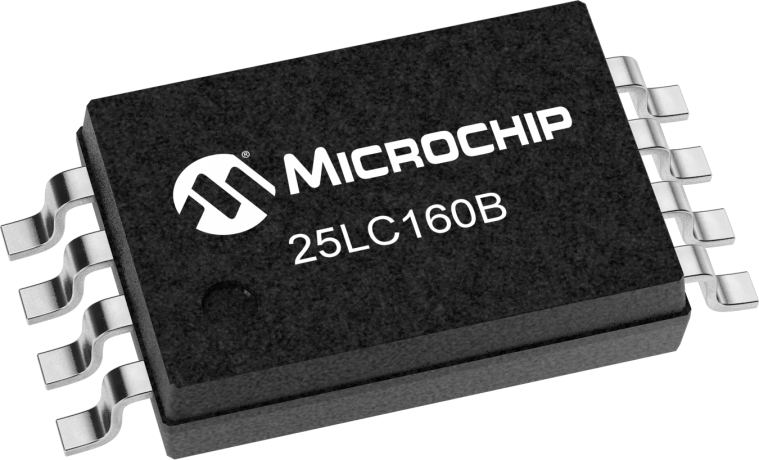

The 25LC160B-E/ST is a 16Kb SPI EEPROM from Microchip with an access time of 100ns and a maximum frequency of 5MHz. It operates over a temperature range of -40°C to 125°C and has a supply voltage range of 2.5V to 5.5V. The device is packaged in a TSSOP-8 package and is lead-free and RoHS compliant. It has a supply current of 6mA and supports write protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip 25LC160B-E/ST datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip 25LC160B-E/ST technical specifications.
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Package/Case | TSSOP |
| Density | 16Kb |
| Frequency | 5MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Frequency | 5MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Organization | 2KX8 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 6mA |
| Write Protection | YES |
| RoHS | Compliant |
