Microchip
25LC160C-E/P
1K X 8 SPI BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
Frequency10MHz
PackagePDIP
Current5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 25LC160C-E/P technical specifications.
General
Access Time
100ns
Access Time-Max
100ns
Package/Case
PDIP
Density
16Kb
Frequency
10MHz
Interface
SPI, Serial
Max Frequency
5MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
EEPROM,
Min Supply Voltage
2.5V
Mount
Through Hole
Operating Supply Voltage
5V
Organization
2KX8
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC160C-E/P Datasheet
Download the complete datasheet for Microchip 25LC160C-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

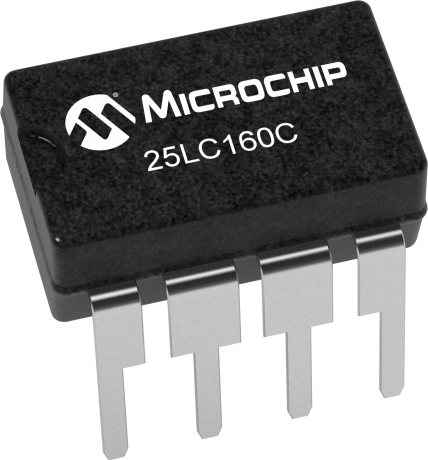

Product Images
