Technical Specifications
Microchip 25LC160DT-I/ST technical specifications.
General
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Package/Case | TSSOP |
| Density | 16Kb |
| Frequency | 10MHz |
| Interface | SPI, Serial |
| Max Frequency | 5MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 25LC160DT-I/ST Datasheet
Download the complete datasheet for Microchip 25LC160DT-I/ST to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

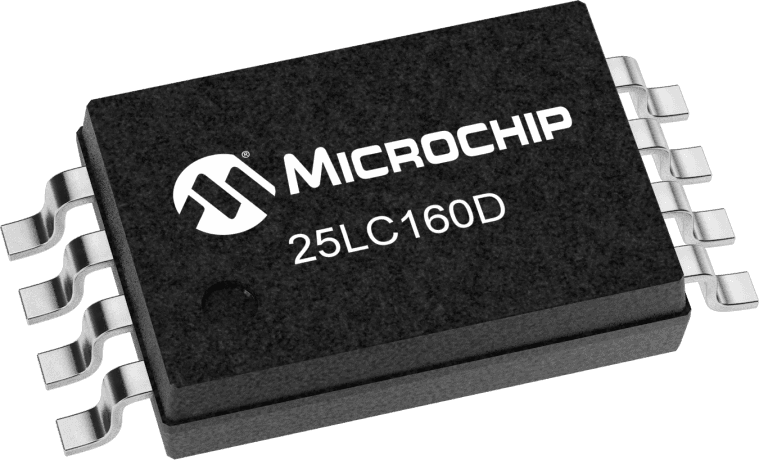

Product Images
