256Kb Serial EEPROM memory, organized as 32K x 8, offers 50ns access time and operates at up to 10MHz. This non-volatile memory supports SPI and I2C interfaces, with a supply voltage range of 2.5V to 5.5V. The component is housed in a lead-free, RoHS compliant 8-pin TSSOP surface-mount package, suitable for operation between -40°C and 85°C.
Frequency10MHz
PackageTSSOP
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 25LC256-I/ST technical specifications.
General
Access Time
50ns
Access Time-Max
50ns
Package/Case
TSSOP
Density
256Kb
Frequency
10MHz
Height
1.05mm
Interface
SPI, I2C, Serial
Lead Free
Lead Free
Length
4.5mm
Max Frequency
10MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
32768
Organization
32KX8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
6mA
Supply Voltage-Nom
5.5V
Width
3.1mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 25LC256-I/ST Datasheet
Download the complete datasheet for Microchip 25LC256-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

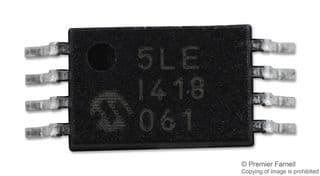

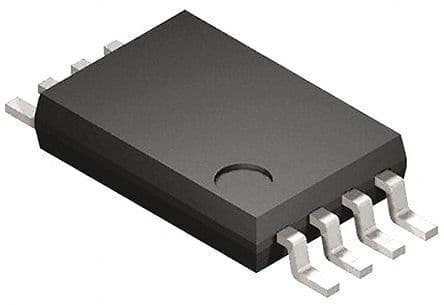

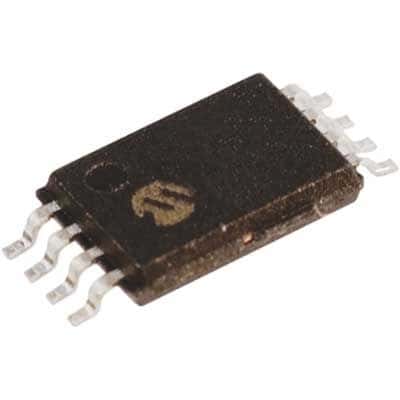

Product Images
