1Kb MICROWIRE serial EEPROM with 128 x 8 organization. Features a 250ns maximum access time and operates at up to 1MHz. This surface mount component is housed in a 8-pin TSSOP package with tin-matte contact plating. It supports a wide supply voltage range from 1.8V to 5.5V and offers write protection.
Frequency2MHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 93AA46A-I/ST technical specifications.
General
Access Time-Max
250ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
2MHz
Height
1.05mm
Interface
MICROWIRE, Serial
Lead Free
Lead Free
Length
4.5mm
Max Frequency
1MHz
Max Operating Temperature
85°C
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Words
128
Organization
128X8
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
2mA
Width
3.1mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 93AA46A-I/ST Datasheet
Download the complete datasheet for Microchip 93AA46A-I/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

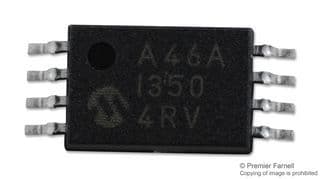

Product Images
