1Kb MICROWIRE bus serial EEPROM, featuring a 3-wire interface and 200ns maximum access time. This through-hole mounted component operates with a supply voltage range of 1.8V to 5.5V and a maximum frequency of 1MHz. Packaged in a 0.300 inch PDIP with tin-matte contact plating, it offers a wide operating temperature range from -40°C to 85°C. Write protection is enabled, and the component is RoHS and REACH SVHC compliant.
Frequency3MHz
PackagePDIP
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip 93AA46C-I/P technical specifications.
General
| Access Time-Max | 200ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 1Kb |
| Frequency | 3MHz |
| Height | 3.3mm |
| Interface | MICROWIRE, Serial, 3-WIRE |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Through Hole |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Width | 7.87mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 93AA46C-I/P Datasheet
Download the complete datasheet for Microchip 93AA46C-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

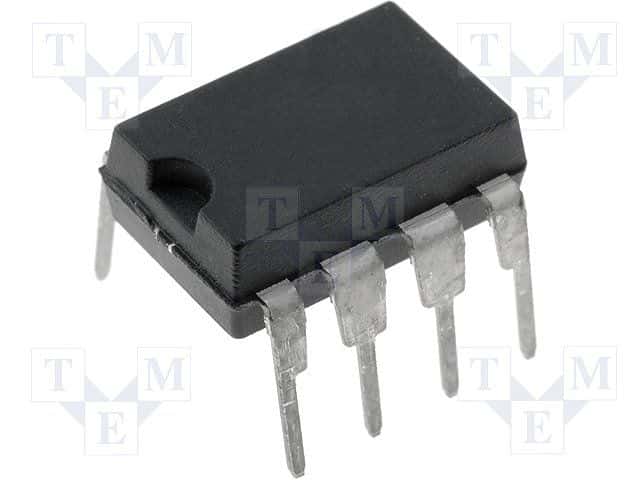

Product Images
